The Supreme
Tungsten Electrodes
Newly Engineered Tungsten Electrodes That Outperforms Other Electrode Types.
E3® Electrodes Maintain A Stable Tip Geometry
And Therefore a longer Life!
Below are the results of 5 hour weld tests at 80, 150 & 250 Amps

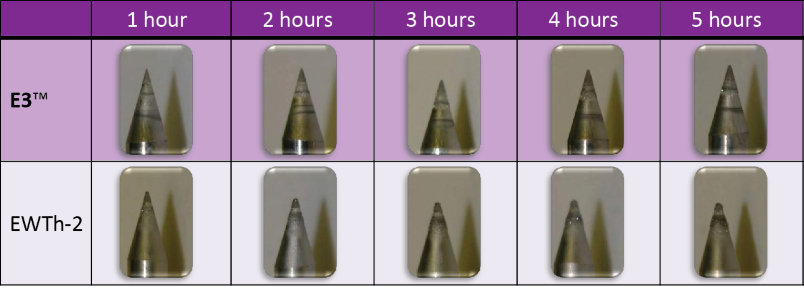

80 Amps for five 1 hour cycles

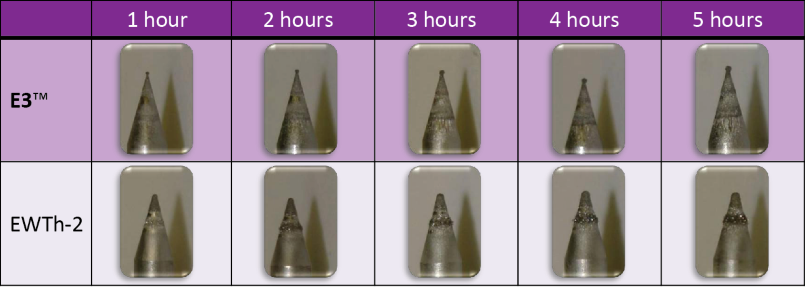

150 Amps for five 1 hour cycles

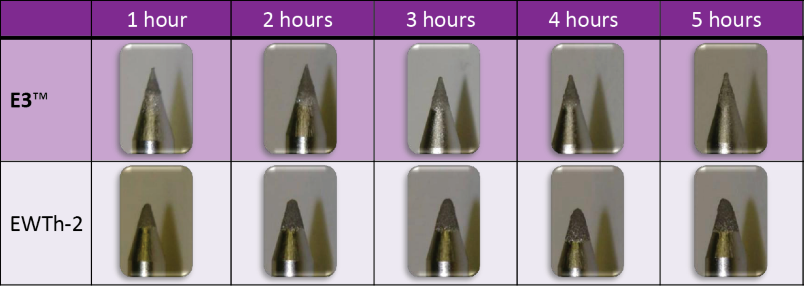

250 Amps for five 1 hour cycles
Welding Parameters For Continuous Welding Test
Electrode: 3/32 - 30°
Ignition assistance: HF-Ignition
Inert gas: Argon 4.6 @ 9 l/min
Gas pre flow time: 5 sec
Gas post flow time: 10 sec
Distance Electrode-Anode: 3 mm
Distance Electrode-nozzle: 5 mm
Anode material: Copper (water-cooled)
Filler material: none
